LP3 - ASUR :10 TW - 100Hz - 25 W

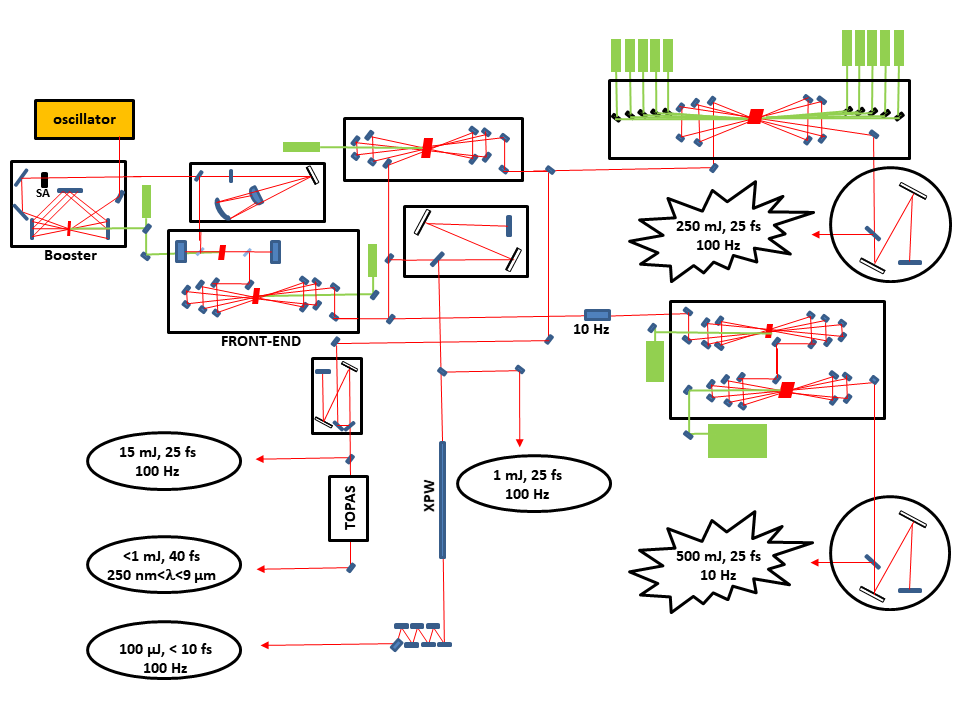

ASUR is a Ti :Sa laser source delivering simultaneously up to 4 synchronized laser beams with one of them unique : 10 TW – 100 Hz – 25 fs. Related main research activities are space and time resolved laser matter interaction and the development of hard X-ray secondary sources.

Laser-based light source parameters

10TW - 100 Hz - 25 fs

Source type
laser Ti:Sa
Photon energy range / wavelength range
750 - 850 [nm]
Peak Photon energy / central wavelenght
800 [nm]
Spectral Bandwidth FWHM / %
80 [nm]
Beam shape
Gaussian
Pulse duration FWHM
25 [fs]
Pulse repetition rate
100 [Hz]
Maximum pulse energy
250 [mJ]
Pulse energy fluctuations %
1 * 10-2 [sigma]
Peak power
10 * 1012 [W]
Contrast
1 * 10-10 [ps]
Peak intensity on target
1 * 1019 [W/cm2]
Pointing stability on target
10 [%]
Beam diameter
5 [um]

20 TW- 10 HZ- 25 fs

Source type
Laser Ti:Sa
Photon energy range / wavelength range
750 - 850 [nm]
Peak Photon energy / central wavelenght
800 [nm]
Spectral Bandwidth FWHM / %
80 [nm]
Beam shape
Gaussian
Other beam shape
Super Gaussian
Pulse duration FWHM
25 [fs]
Pulse repetition rate
10 [Hz]
Maximum pulse energy
500 [mJ]
Pulse energy fluctuations %
1 * 10-2 [sigma]
Peak power
20 * 1012 [W]
Contrast
1 * 10-10 [ps]
Peak intensity on target
2 * 1019 [W/cm2]
Pointing stability on target
10 [%]
Beam diameter
5 [um]

UV-IR OPA

Source type
high energy OPA
Photon energy range / wavelength range
240 - 9000 [nm]
Beam shape
Gaussian
Pulse duration FWHM
60 [fs]
Pulse repetition rate
100 [Hz]
Maximum pulse energy
2 [mJ]

XPW beam line

Source type
laser Ti:Sa
Photon energy range / wavelength range
700 - 900 [nm]
Peak Photon energy / central wavelenght
800 [nm]
Spectral Bandwidth FWHM / %
120 [nm]
Beam shape
Gaussian
Pulse duration FWHM
10 [fs]
Pulse repetition rate
100 [Hz]
Maximum pulse energy
1 * 10-1 [mJ]
Pulse energy fluctuations %
2 * 10-2 [sigma]
Peak power
1 * 1010 [W]
Contrast
1 * 10-11 [ps]
Pointing stability on target
10 [%]
Beam diameter
10 [um]
contacts
Raphael CLADY
Techniques
Absorption
  • IR spectroscopy
  • Time-resolved studies
Emission or Reflection
  • Time-resolved studies
Disciplines
Information & Communication Technologies
  • Components & Micro-systems
Life Sciences & Biotech
  • Other - Life Sciences & Biotech
Material Sciences
  • Other - Material Sciences
Physics
  • Atomic & molecular physics
control/Data analysis
Control Software Type
  • Labview
Data Output Type
  • -
Data Output Format
  • _
