Beamline ID15B is dedicated to the determination of structural properties of solids at high pressure using angle-dispersive-diffraction with diamond anvil cells.

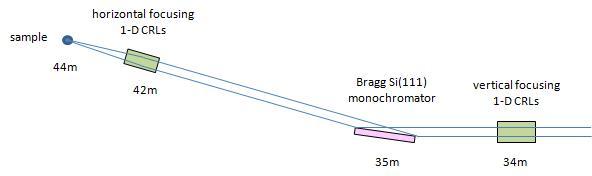

The beam from an in-vacuum U20 insertion-device is focused by vertical and horizontal transfocator and monochromatized by Si(111) Bragg monochromator. The working energy for high pressure experiments is 30 keV with a flux of 1012photons/s at 200 mA. The beam size on the sample is normally about 10x10 µm2.
The scattered radiation is collected by a Mar555 flat panel detector, which has a 430 x 350 mm (555mm diagonal) active area.
A laser spectrometer is available for pressure determination by the ruby fluorescence method.
It is also possible to perform Raman scattering experiments simultaneously.
The beamline is equipped with severalmembrane-type diamondanvil cells (0-60 GPa), a Liquid He cooled cryostat to perform high pressure experiments at low temperatures (down to 10 K), and external resistive heating equipment for high temperatures up to 600 K.
A Nd-YAG laser system is availableexternally for high temperature annealing of samples inside the diamond anvil cell.
IVU20
Si111
horizontal transfocator
vertical tranfocator
EH1
Sample Environment
External resistive furnace for diamond anvil cells; temperatures up to 600K
To perform high pressure experiments at low temperatures (down to 10K); high pressure anvil cells installed inside
It is a closed cycle cryostat.
Beam entry window: Mylar foil; exit window: Kapton foil
0-60 Gpa (up to 150Gpa, depending on diamond anvils) several different cells available + different cells from the high-pressure lab)
for Single crystal / powder diffraction
controlled with GE Pace 6000 (auto pressure controller)
External Nd-YAG laser system for high temperature annealing of samples inside the diamond anvil cell
mar555
Detection
hp-laboratory
Fully equipped high pressure laboratory. This includes membrane diamond
anvil cells, microscopes, micro hole, PRL system, gas loading machine
(for inert gas only) .
Optics laboratory
Raman and laser annealing system
