ID10 - Soft interfaces and coherent scattering beamline

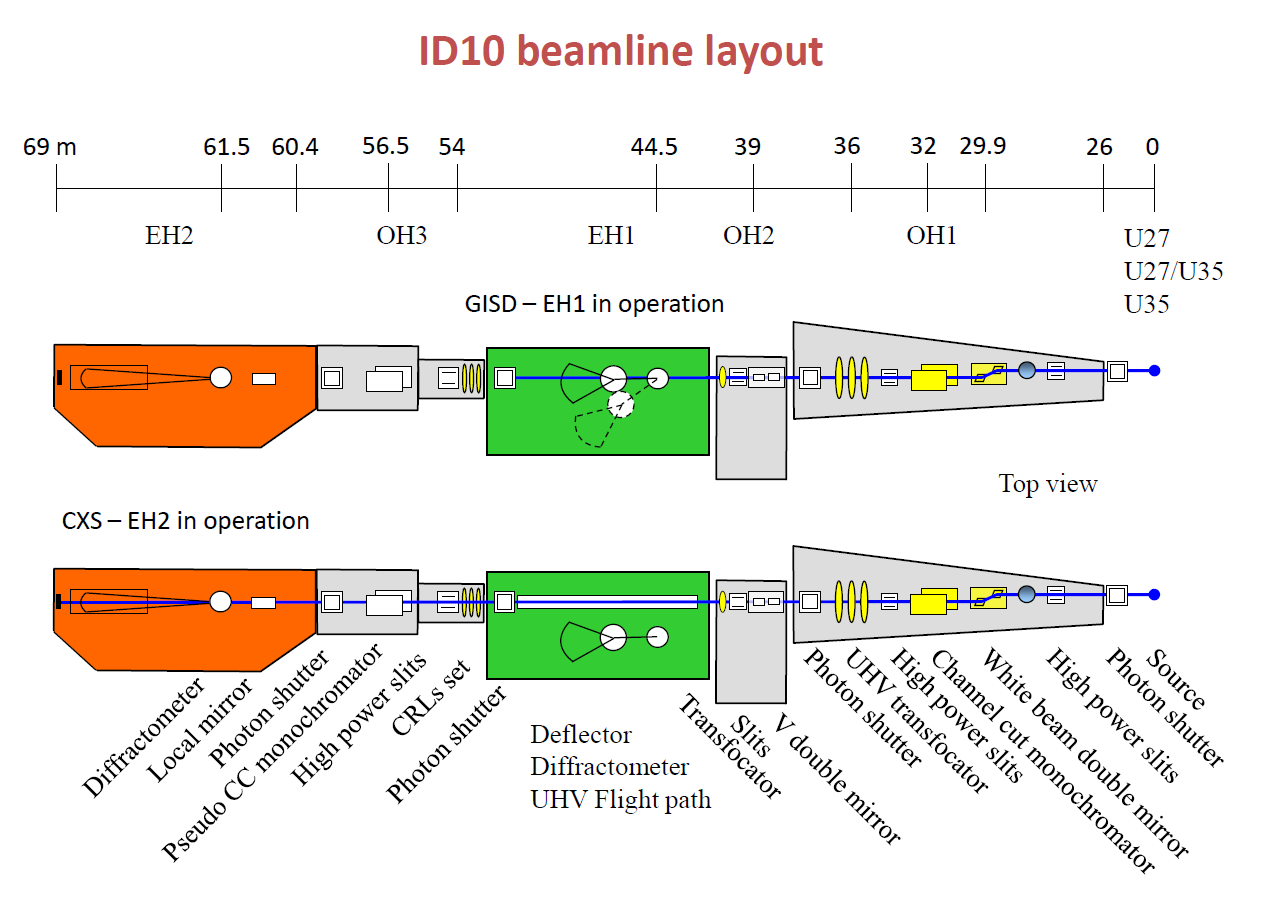

ID10 is a multi-purpose, high-brilliance undulator beamline.
Endstation EH1 is for high-resolution X-ray scattering and surface diffraction on liquid and solid interfaces, combining multiple techniques in a single instrument.
Endstation EH2 is for coherent small-angle X-ray scattering, X-ray photon correlation spectroscopy and coherent diffraction.

The main features of the beamline are:

EH1-SI (Soft Interfaces):

  • high-resolution scattering instrumentation for horizontal and vertical scattering geometry
  • X-ray beam deflector for scattering from liquids (Qz < 2.4 Å-1)
  • energy-tunability: 7 keV < E < 24 keV with Si(111) and 12 keV < E < 30 keV with Si(311)
  • Liquid nitrogen cooled Silicon (111) or (311) crystal channel cut monochromator (intrinsic energy resolution ΔE/E: 1.4*10 -4 and 2.7*10 -5, respectively)
  • double-mirror setup for a strong suppression of higher harmonics.

EH2-CS (Coherent Scattering):

  • High-resolution instrumentation for horizontal scattering geometries (SAXS to WAXS)
  • Possibility of grazing incidence scattering from liquid surfaces
  • Large energy-tunability (7 keV < E < 24 keV)
  • Water cooled Silicon (111) crystal pseudo channel cut monochromators
    (intrinsic energy resolution DeltaE/E : 1.4*10-4)
  • High coherent flux (> 1010 ph/sec/100mA in a 10x10 µm2 beamspot, DeltaE/E = 1.4*10-4)
  • Specialized for X-ray photon correlation spectroscopy (XPCS) experiments (7 keV < E < 13 keV)
  • Optimized for coherent small-angle X-ray scattering (SAXS) (7 keV < E < 24 keV), X-ray photon correlation spectroscopy (XPCS) and coherent X-ray diffraction imaging (CXDI) (7 keV < E < 10 keV)
  • "Pink" beam option (DeltaE/E = 1-3%) (available from January 2013)



Beamline Energy Resolution
1.4 * 10-4 [meV] @ 8 [eV]
2.7 * 10-5 [meV] @ 30 [eV]
Beamline Energy Range
7000 - 30000 [eV]
Max Flux On Sample
1 * 1013 [ph/s] @ 8 [eV]
Spot Size On Sample Hor
250 - 1000 [um]
Spot Size On Sample Vert
10 - 500 [um]
Divergence Hor
0.025 - 0.1 [mrad]
Divergence Vert
0.017 - 0.07 [mrad]
Photon Sources

U27

Type
Undulator

U35

Type
Undulator
Monochromators

Channel cut monochromator

Energy Range
7000 - 30000 [eV]
Type
Channel cut monochromatic with two pairs of Silicon crystals Si(111) and Si(311)

Pseudo channel cut monochromator

Energy Range
7000 - 24000 [eV]
Type
Water cooled monochromator with pair of highly polished Si(111) crystals assembled in a way of channel cut monochromator
Other Optics

Transfocator

Description
Focusing system on the base of 2D beryllium CRLs to focus on the sample position (at both experimental hutches) in the energy range from 7keV to 30 keV
Endstations or Setup

EH1

Diffractometer
high-resolution scattering instrumentation for horizontal and vertical scattering geometry combined with the X-ray beam deflector for studies on liquid surfaces
Endstation Operative
Yes

Sample Environment

Pressure (min)
1000 [mbar]
Pressure (Max)
150000 [mbar]
Temperature
283 - 373 [K]

EH2

Diffractometer
Diffractometer for X-ray photon correlation spectroscopy (XPCS), SAXS, WAXS and CXDI
Detectors

Andor CCD

Type
CCD detector
Passive or Active (Electronics)
Active

Detection

Detected Particle
Electron

APD

Type
avalanche photo diode
Passive or Active (Electronics)
Active

Detection

Detected Particle
Electron

Cyberstar scintillation counter

Passive or Active (Electronics)
Active

Detection

Detected Particle
Electron

Eiger 500K

Type
Si sensor
Description
22 kzH in 4 bit mode
Pixel Size
X = 75 [um], Y = 75 [um]
Array Size
X = 1030 [pixel], Y = 516 [pixel]
Thickness
450 [um]
Passive or Active (Electronics)
Active

Detection

Detected Particle
Electron

Maxipix 1x1

Type
Silicon sensor
Pixel Size
X = 55 [um], Y = 55 [um]
Array Size
X = 256 [pixel], Y = 265 [pixel]
Thickness
500 [um]
Passive or Active (Electronics)
Active

Detection

Detected Particle
Electron

Maxipix 1x5

Description
Silicon sensor
Pixel Size
X = 55 [um], Y = 55 [um]
Array Size
X = 256 [pixel], Y = 1280 [pixel]
Thickness
500 [um]
Passive or Active (Electronics)
Active

Detection

Detected Particle
Electron

Maxipix 2x2

Description
two detectors, one with Silicon and another with CdTe sensor
Pixel Size
X = 55 [um], Y = 55 [um]
Array Size
X = 512 [pixel], Y = 512 [pixel]
Passive or Active (Electronics)
Active

Detection

Detected Particle
Electron

Mythen

Description
Two Dectris detecors, one Mythen 1K with silicon sensor of 1mm to work at high energies and anothe Mythen 2K with silicon sensor of 400 microns
Pixel Size
X = 50 [um], Y = 50 [um]
Passive or Active (Electronics)
Active

Detection

Detected Particle
Electron

Vortex

Type
silicon drift
Description
energy resolution detector
Passive or Active (Electronics)
Active

Detection

Detected Particle
Electron
Support Laboratories

sample preparation laboratory

Description

The ID10 chemistry laboratory is a small lab located in front of the beamline. The ID10 chemistry lab offers a fume cupboard and several meters of bench-top space. All standard equpiment (balances, pH-meter, fridge/freezer, furnace, ultrasonic bath, centrifuge, stirrer, optical microscope) and deioinized water is available.


contacts
Oleg KONOVALOV
Federico ZONTONE
Yuriy CHUSHKIN
Techniques
Diffraction
  • Crystallography
  • Powder diffraction
  • Surface diffraction
  • Time-resolved studies
Emission or Reflection
  • Reflectrometry
  • Time-resolved studies
  • X-ray fluorescence (XRF)
Imaging
  • X-ray microscopy
Scattering
  • Coherent scattering
  • Elastic scattering
  • Small angle scattering
  • Time-resolved scattering
  • Wide angle scattering
Disciplines
Chemistry
  • Other - Chemistry
Life Sciences & Biotech
  • Other - Life Sciences & Biotech
Material Sciences
  • Knowledge based multifunctional materials
  • Other - Material Sciences
Physics
  • Atomic & molecular physics
control/Data analysis
Control Software Type
  • BLISS and SPEC
Data Output Type
  • scan files + imges
Data Output Format
  • ascii, edf (binary+header)
