ID11 - Materials Science Beamline
ID11 is a multipurpose beamline concentrating on diffraction experiments in the area of materials science. The beamline offers a high flux at high energies, making it suitable for fast experiments or very small samples.

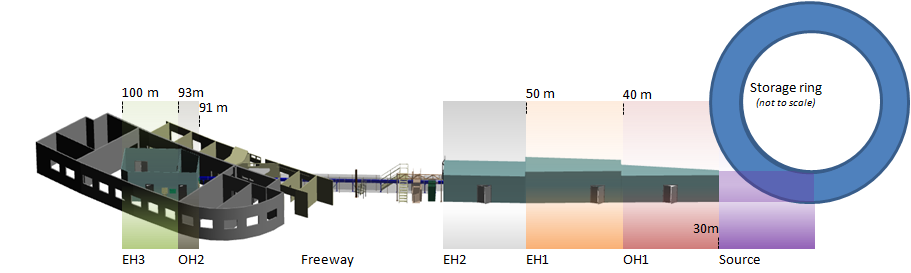

The first hutch has a heavy duty diffractometer which can host large sample environments such as furnaces, high-pressure cells or cryostats.
The second hutch is optimised for diffraction based X-ray microstructure imaging with micron or sub-micron resolution.
Beamline Energy Range
25000 - 140000 [eV]
Spot Size On Sample Hor
0.15 - 1800 [um]
Spot Size On Sample Vert
0.12 - 1500 [um]
Photon Sources
cpm18
Type
Undulator
Period
18 * 10-3 [m]
u22
Type
Undulator
Period
22 * 10-3 [m]
Monochromators
CRL + Pinhole
Type
Compound refractive lens focussing on a pinhole, see dx.doi.org/10.1107/S0909049510044365
Resolving Power
1 * 10-2 [deltaE/E] @ 36000 [eV]
LaueLaue
Energy Range
18000 - 140000 [eV]
Type
Water cooled double crystal Laue
Resolving Power
2 * 10-3 [deltaE/E] @ 40000 [eV]
Other Optics
Al CRL
Description
Transfocator containing 200 um radius circular Al lenses, from 2 to 255 lenses for the EH3 hutch.
KB mirror
Description
Mulitilayer mirror offering ~1x2 um focus for the 3DXRD station in EH3 in the range 30-80 keV.
Si CRL
Description
Crossed linear silicon lenses for the nanoscope endstation in the EH3 hutch. The lenses have a 50 um aperture and working distance of ~100 to 150 mm.
Endstations or Setup
3DXRD
Diffractometer
Huber tower : air bearing vertical rotation axis on top of a base tilt. Sample translation and tilts are above the rotation axis.
Endstation Operative
Yes
Sample
Sample Type
Crystal, Amorphous, Fiber, Gel, Liquid
Mounting Type
Up to 5 kg
EH1
Diffractometer
Huber : vertical rotation axis with sample translations
Sample
Sample Type
Crystal, Amorphous, Fiber, Gel, Liquid
Mounting Type
Up to 200 kg
Sample Environment
Description
Admet mini load frame:
Max load : ±5kN in tension/compression
Maximum distance between the grips = 54 mm
Minimum distance between the grips = 17 mm
Max width of flat sample for tensile test (distance between screws in grips) = 10 mm.
Diameter of round grips = 25.4 mm
Distance between load screws = 60 mm
Max load : ±5kN in tension/compression
Maximum distance between the grips = 54 mm
Minimum distance between the grips = 17 mm
Max width of flat sample for tensile test (distance between screws in grips) = 10 mm.
Diameter of round grips = 25.4 mm
Distance between load screws = 60 mm
Description
Capillary oven (resistive heater):
Max temperature: 1500ºC
gasflow possible
Max temperature: 1500ºC
gasflow possible
Temperature
300 - 1780 [K]
Description
Cryostream 600 series:
Temperature from 90 to 300 K
Stability: ~0.1 K
Capillary or single crystal samples (max Ø 1mm)
Temperature from 90 to 300 K
Stability: ~0.1 K
Capillary or single crystal samples (max Ø 1mm)
Temperature
90 - 300 [K]
Description
Max load: ±3kN compression / tension / cycling
Max temperature: 1500°C
Heating and cooling rates of up to 200°C/s and 100°C/s respectively (depending on sample geometry)
Electro-Thermal Mechanical Testing; heating by direct current through sample
Tension / compression / cycling
Max temperature: 1500°C
Heating and cooling rates of up to 200°C/s and 100°C/s respectively (depending on sample geometry)
Electro-Thermal Mechanical Testing; heating by direct current through sample
Tension / compression / cycling
Temperature
300 - 1780 [K]
Description
Hydraulic load frame:
Max load: ±25 kN
Max stroke: 100mm
Use for tension/compression/fatigue
Max load: ±25 kN
Max stroke: 100mm
Use for tension/compression/fatigue
Description
Nanox stress-rig:
Tension and fatigue experiments
Tension and fatigue experiments
Nanoscope
Diffractometer
Vertical air bearing rotation axis with hexapod and piezo translators.
Endstation Operative
Yes
Sample
Sample Type
Crystal, Amorphous, Fiber, Gel, Liquid
Mounting Type
Up to 500g
Techniques
Diffraction
- Crystallography
- Powder diffraction
- Time-resolved studies
- Topography
Imaging
- X-ray tomography
Scattering
- Elastic scattering
- Wide angle scattering
Disciplines
Chemistry
- Other - Chemistry
Earth Sciences & Environment
- Other - Earth Sciences & Environment
Energy
- Other - Energy
Engineering & Technology
- Other - Engineering & Technology
Life Sciences & Biotech
- Other - Life Sciences & Biotech
Material Sciences
- Knowledge based multifunctional materials
- Metallurgy
- Other - Material Sciences
Physics
- Other - Physics
control/Data analysis
Control Software Type
- SPEC and BLISS
Data Output Type
- Diffraction or tomography data (series of 2D images)
Data Output Format
- edf
